The cutting machines for pastry products with ultrasonic & waterjet system are designed by our experienced engineers and are exclusively manufactured in our factory.

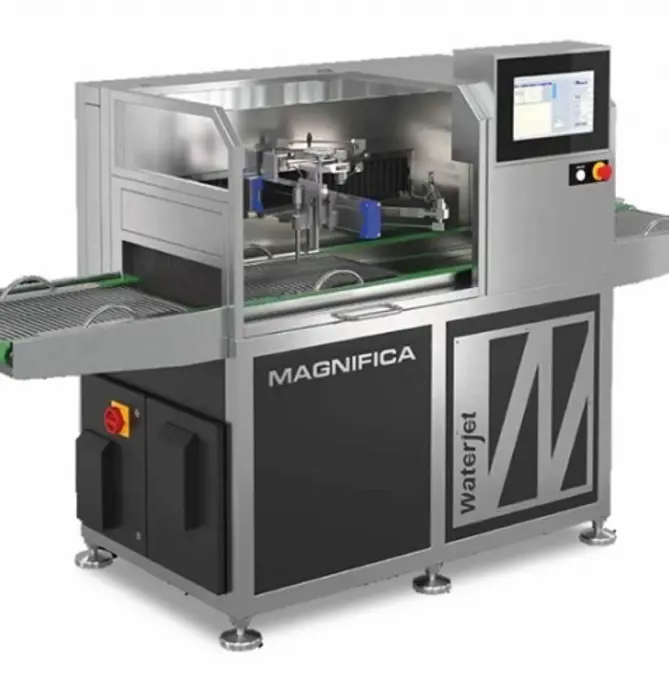

Magnifica MG46
CNC water cutting technology for confectionery and bakery
Series: Chef line
CNC confectionery hydrocutting machine
The high productivity cutting machine for confectionery & bakery.
Automatic mobile multi-disc system with 3 different workstations for loading, unloading and internal cutting area, valuable for increasing productivity.
Lateral linear motion on the workstations allows stainless steel tests to be automatically transported to the central cutting area, while cutting is automatically moved to the exit allowing the operator to easily unload hidden product.
The Magnifica MG46 water cutting system has the following features:
- Automatic mobile multi-disc system.
- Transportation Tactics.
- CNC touch screen.
- Built-in HP energy-saving hybrid servo pump.
- Customizable.
Watercad-cam is a CAD-CAM solution designed for easy programming of waterjet cutting machines. Within the screen environment you can draw or import cuts with DXF or DWG files.
Optional CAD-CAM programming HMI pump diagnostic Operating pressure power consumption right-left temperature control, right-left cooling temperature, time of each cycle.
CUTTING PLATE
60x40cm
|
CUTTING SPEED
5 m /min
|
WATER CONSUMPTION / HUMIDITY CONTROL
0,3 lt / min
|
WORKING PRESSURE
up to 4.000 Bar
|
SOFTWARE
CAD-CAM με Nesting
|
POWER SUPPLY
5 kW
|
DIMENSIONS
1750x950x1500mm
|
