The bakery ovens are designed by experienced engineers and are exclusively manufactured in Tagliavini factory.
Tagliavini

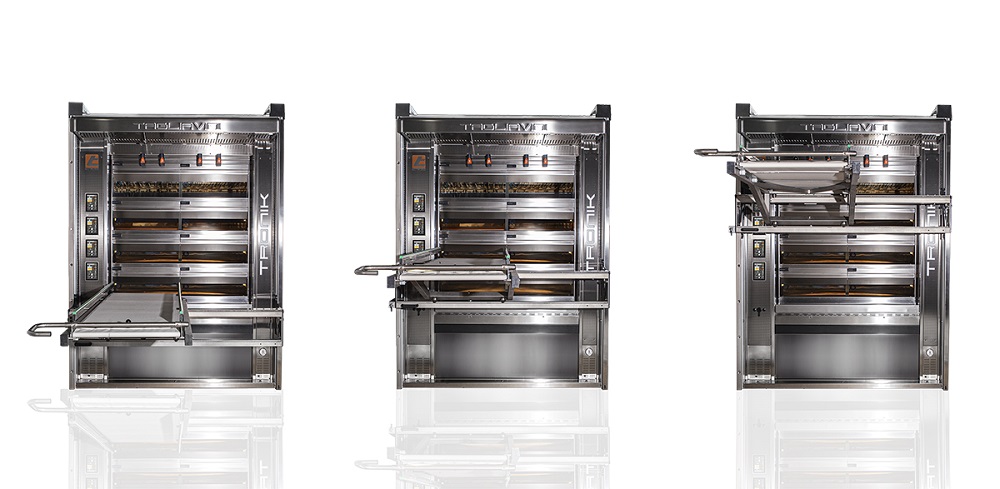

TRONIK the electric oven unique in the category for its technological innovations, its operative advantages and its energy saving.
In addition to perfect baking, this oven combines advantages such as use flexibility, clean energy, easy installation and above all it is economical of consumptions.
TRONIK the electric oven unique in the category for its technological innovations, its operative advantages and its energy saving.
In addition to perfect baking, this oven combines advantages such as use flexibility, clean energy, easy installation and above all it is economical of consumptions.
TRONIK the electric oven unique in the category for its technological innovations, its operative advantages and its energy saving.
In addition to perfect baking, this oven combines advantages such as use flexibility, clean energy, easy installation and above all it is economical of consumptions.
Every baking chamber has on/off and adjustments completely independent (partialization of installed power and its distribution to top and bottom).
All chambers can be used at the same time at different temperatures.
It is suitable for baking bread and pastries of any kind and size.
Because of the high technology applied, TRONIK has a maximum power output of about 2,9 kW/m2, much less than that of other electric ovens on the market and, with continuous oven loading and unloading, it consumes just 1.8 kW/m2.
TRONIK can be placed among three walls, view that all maintenance operations are easily made from the front of the oven.
The set temperature is reached by means of a gradual heating schedule, which prevents the baking chamber from differing respect to the pre-set temperatures, reducing to the minimum the oscillations around the set value.
- SMART control unit: SMART digital control unit with display for controlling: baking temperature, baking time with end of baking alarm, steam inlet time, lighting, steam evacuation valve opening/closure.
- I BAKE: The I BAKE control panel incorporates the top level of technology in a touch screen. As well as the functions of the SMART control unit, it also includes energy management, weekly start-up programming and memory space for up to 100 baking programs.
- Perfect baking: The exclusively designed armoured resistance elements installed directly inside the baking chamber, both at the top and bottom, are positioned 5 cm apart creating a greater heating surface area to guarantee uniform baking. The heat is released uniformly throughout the baking chamber and bakes the product delicately without being over aggressive.
- Maximum steam output: Depending on requirements, it is possible to choose between standard separate steam generators or a steamer. The steam generators, one for each chamber, are thermostatically controlled to produce an exuberant quantity of saturated steam. The patented steamer instantly produces large amounts of steam at minimum costs.
- Reduced consumption: REC (Reduced Energy Consumption) System that contributes consumptions more than 30% lower than other similar products.
- Bakery management system: The consumption optimizer can manage the energy requirements of the whole bakery with just the power installed in the oven. In this way the user can avoid using unnecessary kW thus reducing the cost of the product!
- Different temperatures: Each chamber acts like a separate oven which holds all the electronic control, command and power equipment needed for individual operation.
- Reduced dimensions: Reduced overall dimensions and the possibility of installing the oven between three walls as all maintenance operations can be carried out from the front.
DOORS
3
|
POWER SUPPLY
22,95 kW
|
|
13,77kWh
|
DIMENSIONS
1530x1700mm (internally) - 2050x2410mm (externally)
|
|
DOORS
3
|
POWER SUPPLY
28,35 kW
|
|
17,01kWh
|
DIMENSIONS
1530x2100mm (internally) - 2050x2810mm (externally)
|
|
DOORS
3
|
POWER SUPPLY
33,75 kW
|
|
20,25kWh
|
DIMENSIONS
1530x2500mm (internally) - 2050x3210mm (externally)
|
|
DOORS
4
|
POWER SUPPLY
30,60 kW
|
|
18,36kWh
|
DIMENSIONS
1530x1700mm (internally) - 2050x2410mm (externally)
|
|
DOORS
4
|
POWER SUPPLY
37,80 kW
|
|
22,68kWh
|
DIMENSIONS
1530x2100mm (internally) - 2050x2810mm (externally)
|
|
DOORS
4
|
POWER SUPPLY
45 kW
|
|
27kWh
|
DIMENSIONS
1530x2500mm (internally) - 2050x3210mm (externally)
|
|
DOORS
5
|
POWER SUPPLY
38,25 kW
|
|
22,95kWh
|
DIMENSIONS
1530x1700mm (internally) - 2050x2410mm (externally)
|
|
DOORS
5
|
POWER SUPPLY
47,25 kW
|
|
28,35kWh
|
DIMENSIONS
1530x2100mm (internally) - 2050x2810mm (externally)
|
|
DOORS
5
|
POWER SUPPLY
56,25 kW
|
|
33,75kWh
|
DIMENSIONS
1530x2500mm (internally) - 2050x3210mm (externally)
|
|
DOORS
3
|
POWER SUPPLY
27,54 kW
|
|
16,52kWh
|
DIMENSIONS
1850x1700mm (internally) - 2370x2410mm (externally)
|
|
DOORS
3
|
POWER SUPPLY
34,02 kW
|
|
20,41kWh
|
DIMENSIONS
1850x2100mm (internally) - 2370x2810mm (externally)
|
|
DOORS
3
|
POWER SUPPLY
40,50 kW
|
|
24,30kWh
|
DIMENSIONS
1850x2100mm (internally) - 2370x3210mm (externally)
|
|
DOORS
4
|
POWER SUPPLY
36,72 kW
|
|
22,03kWh
|
DIMENSIONS
1850x1700mm (internally) - 2370x2410mm (externally)
|
|
DOORS
4
|
POWER SUPPLY
45,36 kW
|
|
27,22kWh
|
DIMENSIONS
1850x2100mm (internally) - 2370x2810mm (externally)
|
|
DOORS
4
|
POWER SUPPLY
54,00 kW
|
|
32,40kWh
|
DIMENSIONS
1850x2100mm (internally) - 2370x3210mm (externally)
|
|
DOORS
5
|
POWER SUPPLY
45,90 kW
|
|
27,54kWh
|
DIMENSIONS
1850x1700mm (internally) - 2370x2410mm (externally)
|
|
DOORS
5
|
POWER SUPPLY
56,70 kW
|
|
34,02kWh
|
DIMENSIONS
1850x2100mm (internally) - 2370x2810mm (externally)
|
|
DOORS
5
|
POWER SUPPLY
67,50 kW
|
|
40,50kWh
|
DIMENSIONS
1850x2500mm (internally) - 2370x3210mm (externally)
|
|
DOORS
3
|
POWER SUPPLY
45,36 kW
|
|
27,22kWh
|
DIMENSIONS
2470x2100mm (internally) - 2990x2810mm (externally)
|
|
DOORS
3
|
POWER SUPPLY
54,00 kW
|
|
32,40kWh
|
DIMENSIONS
2470x2500mm (internally) - 2990x3210mm (externally)
|
|
DOORS
4
|
POWER SUPPLY
60,48 kW
|
|
36,29kWh
|
DIMENSIONS
2470x2100mm (internally) - 2990x2810mm (externally)
|
|
DOORS
4
|
POWER SUPPLY
72 kW
|
|
43,20kWh
|
DIMENSIONS
2470x2500mm (internally) - 2990x3210mm (externally)
|
